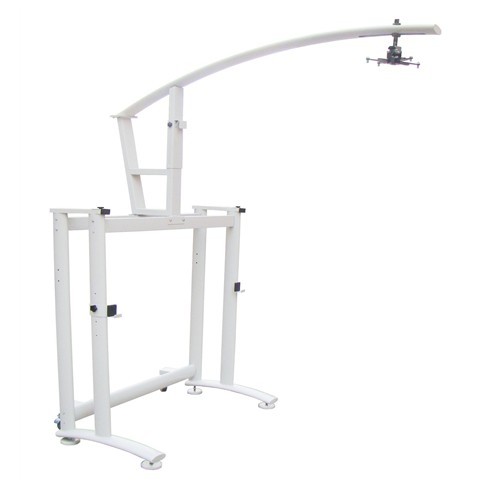

电子白板商务移动一体支架(Business Integrated Movable Electronic Whiteboard stand)：
1. 选用壁厚2mm以上的椭圆钢无缝焊接而成，投影机吊架承重120斤无变形，保证了整个支架的牢固稳定。
(More than 2mm thick elliptical and seamless welded. The projector hanger can bear 60kg without deformation to ensure stability.)
2. 流体的造型，合理的力学结构使投影机重心下沉后靠，避免了同类产品在书写过程中因投影机抖动而造成影像晃动影响使用。
(Fluidal design and reasonable mechanical structure make the gravity center of projector behind and sink to avoid projector wobble and image shaking when users writing on the boards.)
3. 可满足72寸-108寸白板任意安装。
(Acceptable whiteboard Size: 72’’-108’’)
4. 白板上下高度可调，满足不同场合及人士需要。
(The distance between whiteboard and floor is adjustable to meet different occasions and requirements.)
5. 投影机悬臂开槽设计，使得投影机距离白板最近1000MM、最远1300MM任意可调。
(Slotted design on the projector cantilever makes the distance between the projector and whiteboard adjustable from 1000MM to 1300MM)
6. 采用简约实用万能爪盘固定投影机，可前后左右上下六向平移调节投影机位置和重心，可前后左右平面旋转和三维旋转调整画面反正，适用于所有投影机。
(Fixed the projector by the simple and practical omnipotent claw hanger which can adjust the projector position and center of gravity on six directions(Forward, backward, left, right, down, upward). And applicable to all projectors.) -Details please refer to the omnipotent claw hanger specification.
7. 底座安装水平调节配重底座，配备带刹车的万向滚轮，既保证了移动的方便性又使得使用时能够平稳和牢固。
(Equipped with the universal brake casters and installed the heavy pedestal which can adjust on horizontal direction make the stand move convenient and ensured the stand stability.)
8. 暗藏式走线使得整个产品美观、大方。
(Hided lines make the stand beautiful and elegant.)
9. 可选购增设电脑托盘和数码展台托盘。可根据用户需求进行订制其他造型结构的支架。
(Optional Accessories: Computer Tray and Visualizer Tray. Also accept the ODM orders.)
|
产品材质 (Material) |
椭圆钢 (Elliptical steel) |
|
宽度 (W) |
1200MM |
|
高度 (H) |
1050-1500MM |
|
最大承载重量 (Max allowable Weight) |
50KG |
|
适用白板尺寸 (Acceptable whiteboard size) |
72＂-108＂ |
|
离地距离 (Distance to floor) |
720-960MM |
投影机离板面距离
(Distance of the projector away from the whiteboard ) |
1000-1300MM |
|
投影机适用范围 (Applicable projector) |
各品牌各型号短焦投影机
(All brands and types of short-throw projectors) |
|
包装尺寸 (Packing Size) |
A:1652*822*131MM(±5)
B:2032*752*161MM(±5) |
|
净重 (N.W.) |
A:24(±2)KG
B:37(±2)KG |
|
毛重 (G.W.) |
A:28(±2)KG
B:31(±2)KG |
